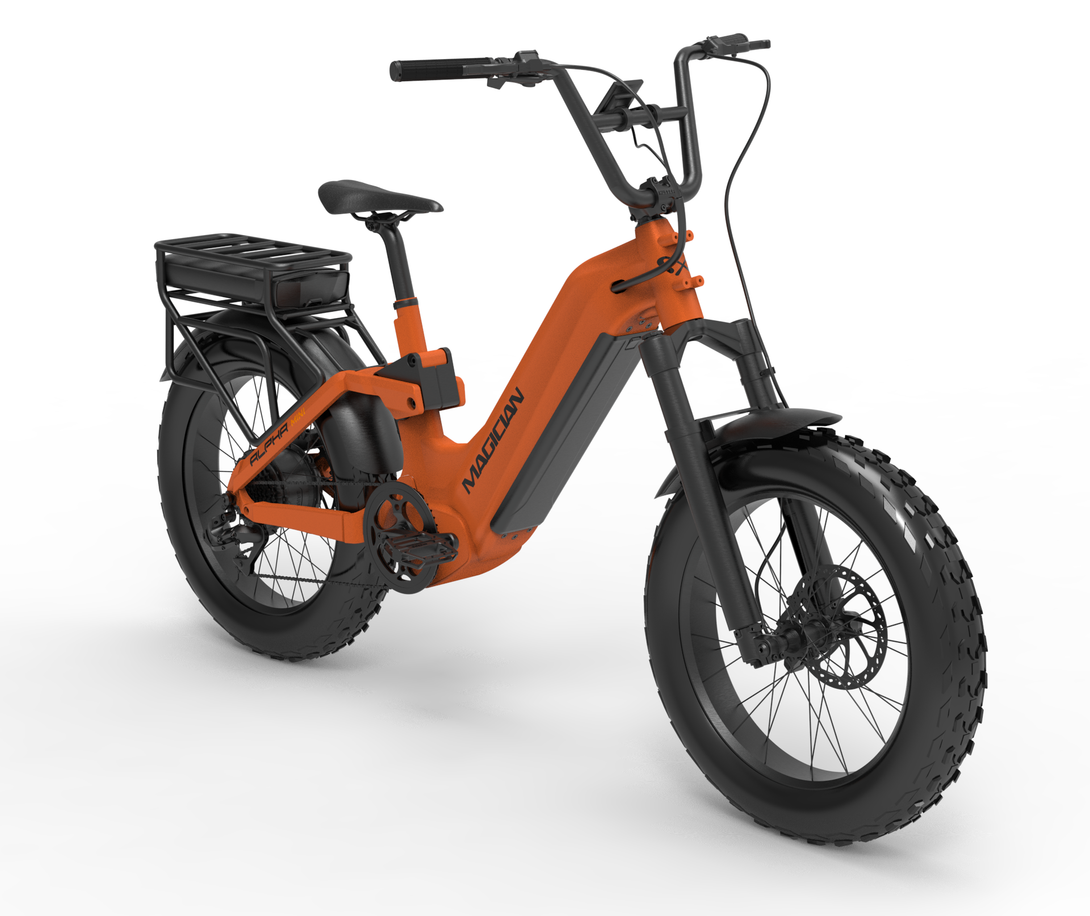

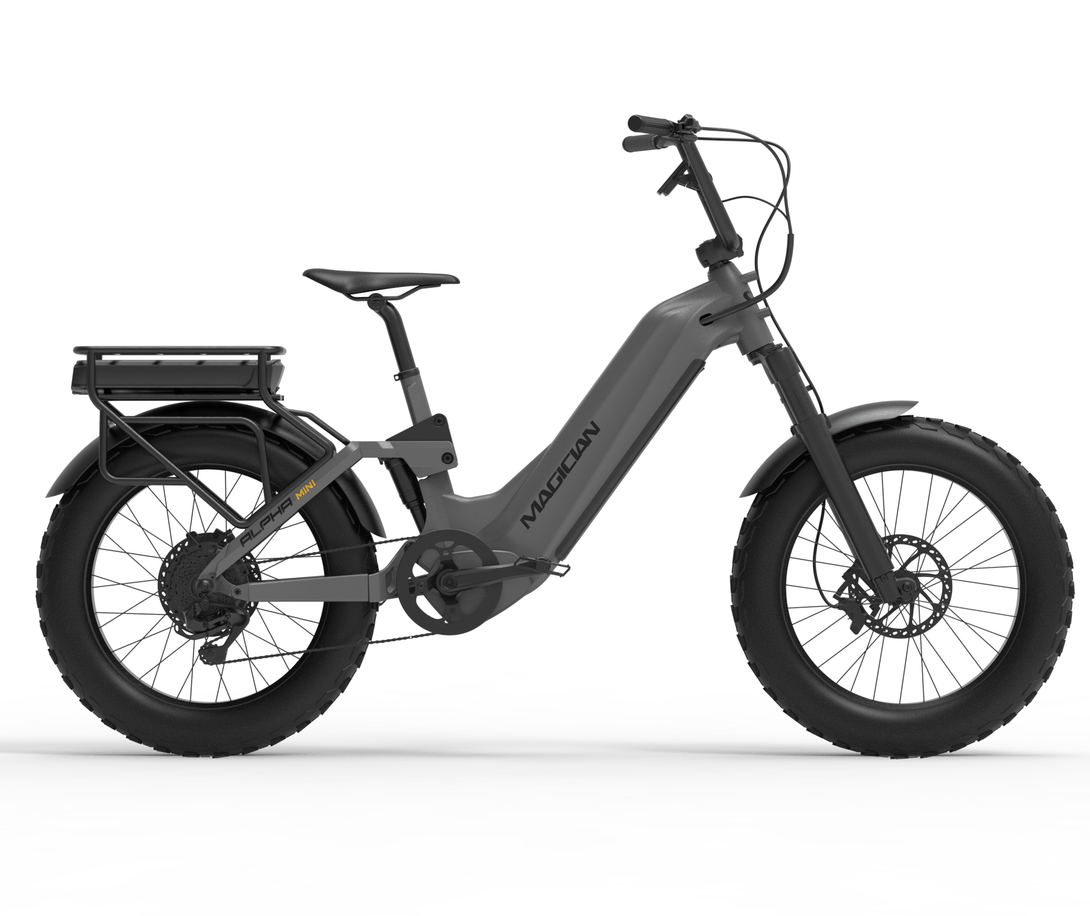

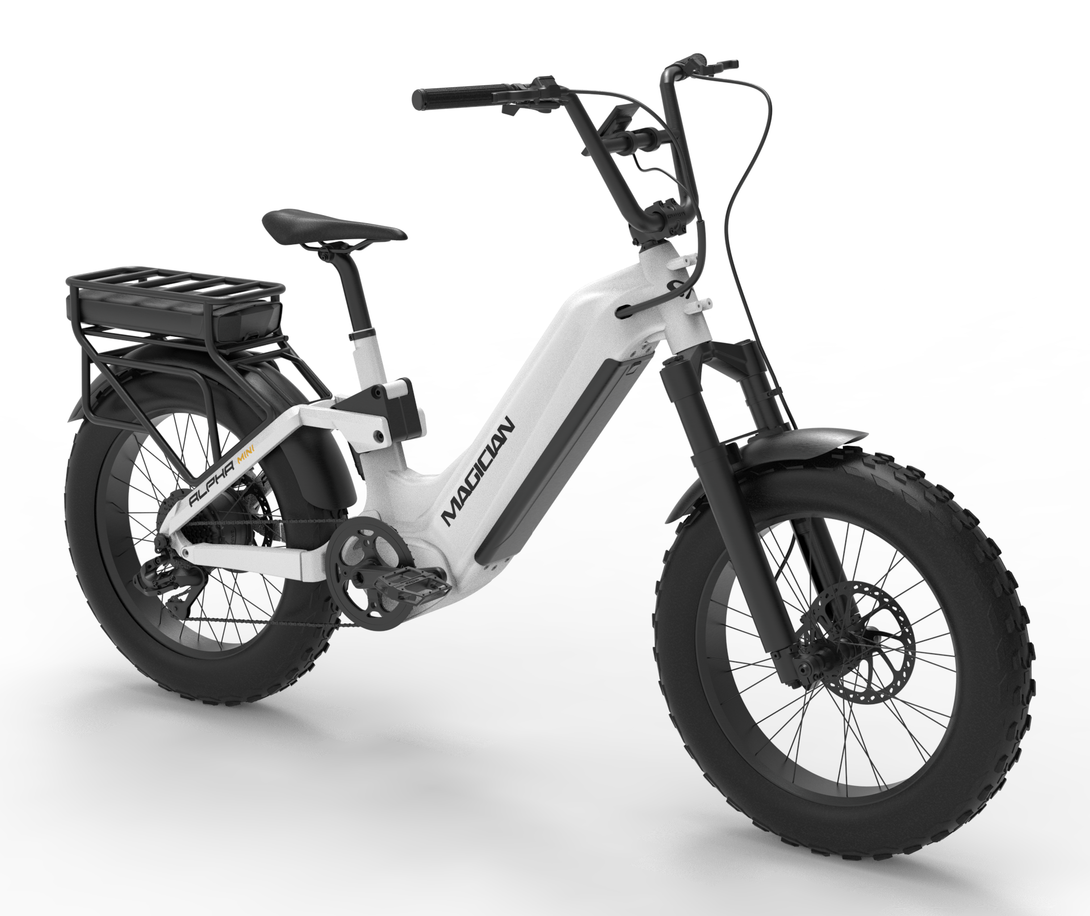

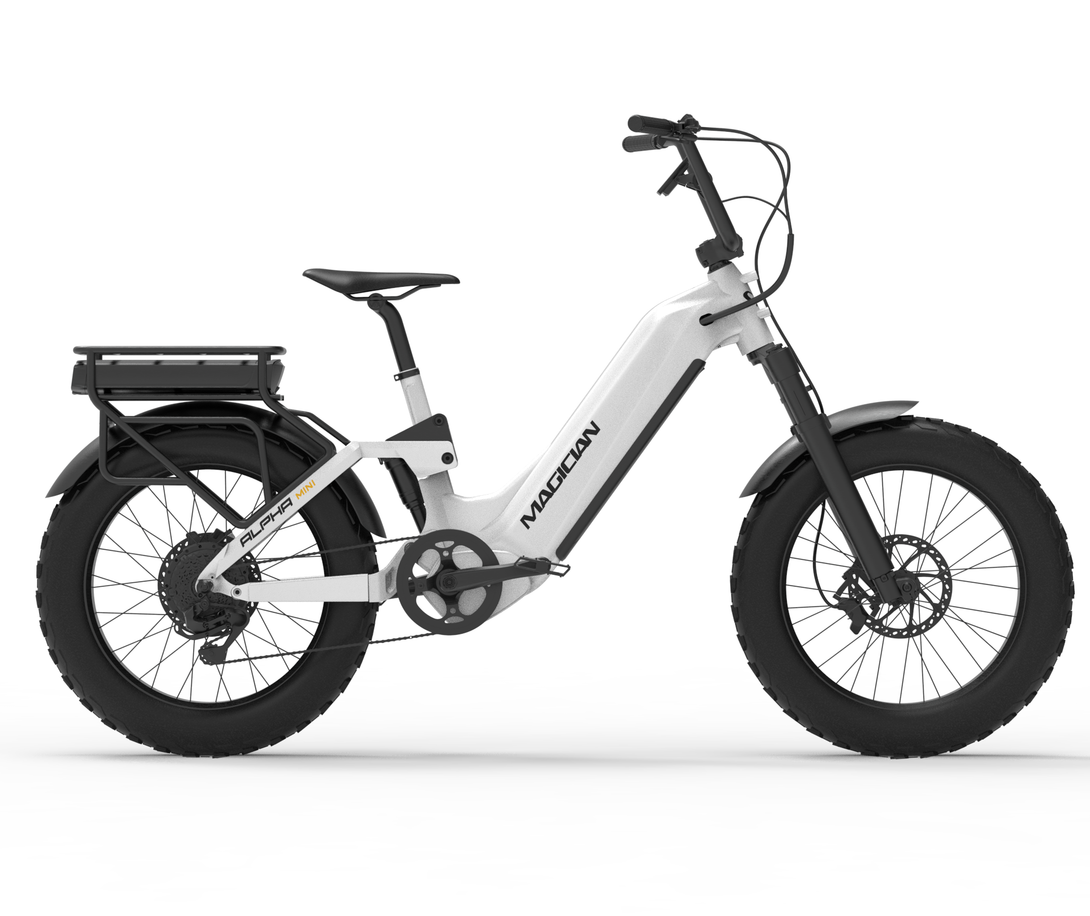

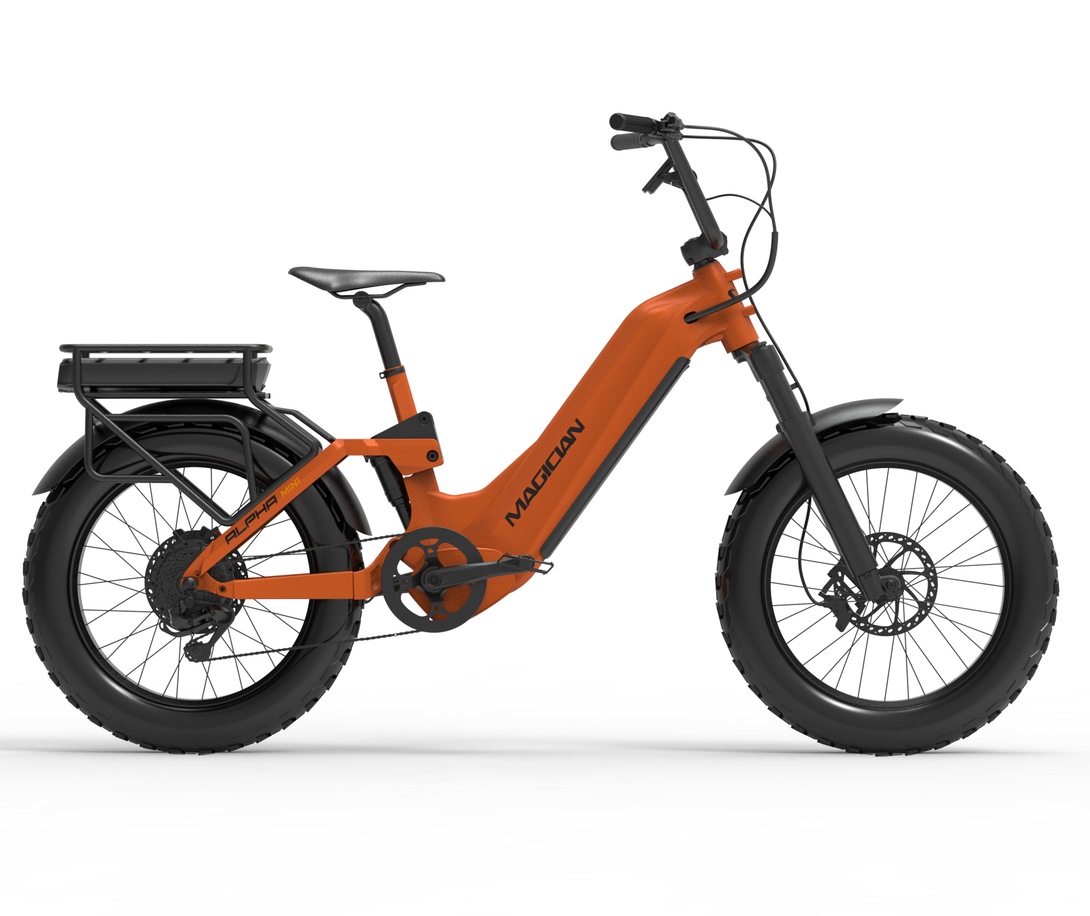

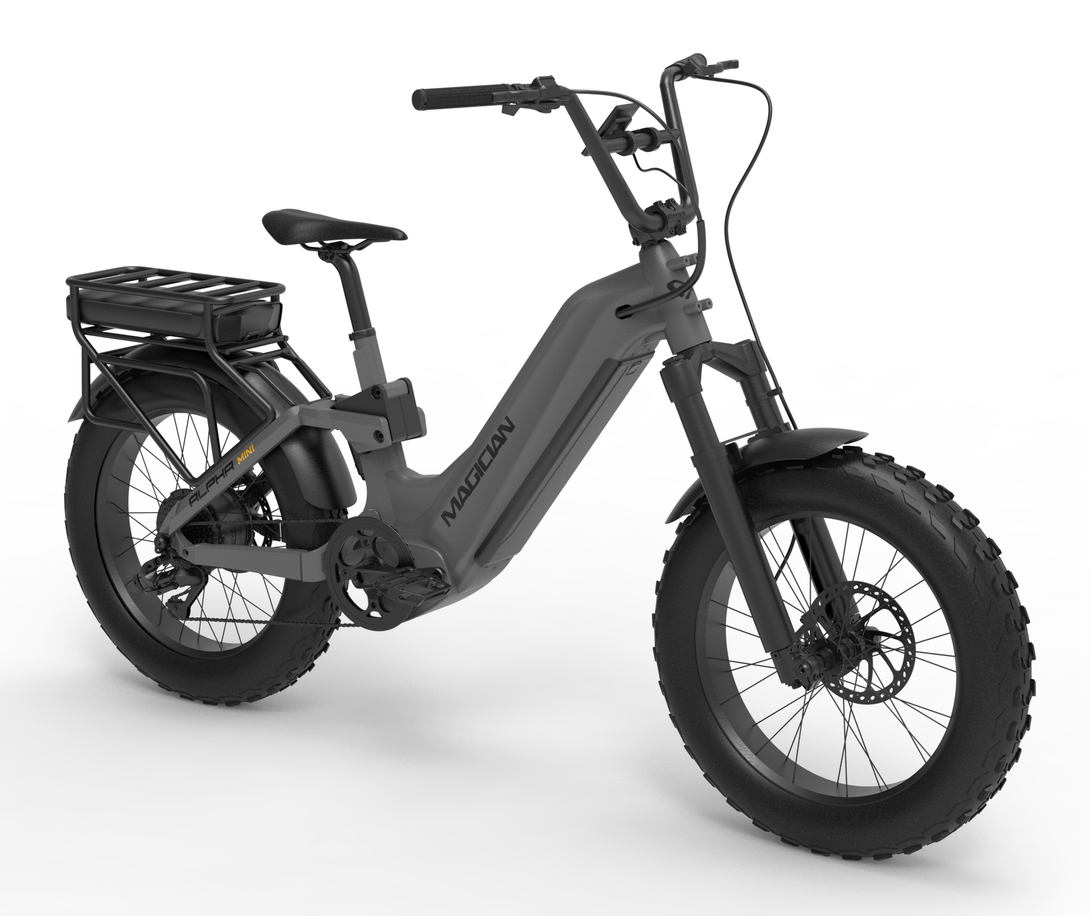

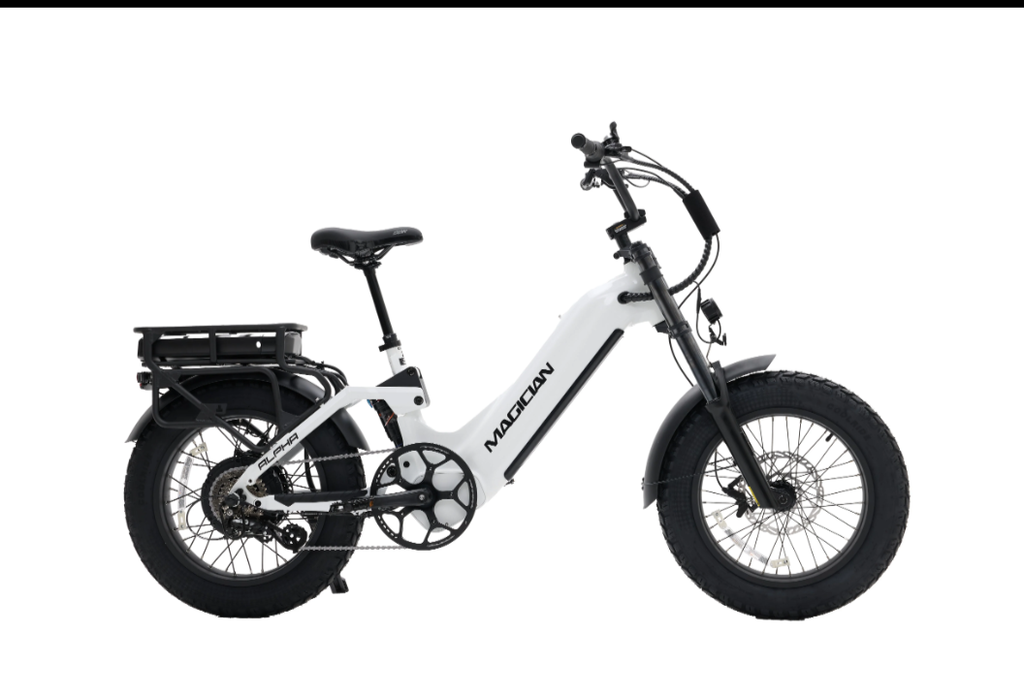

Alpha Mini
Alpha Mini is Built for hardcore riders, Full suspension Frame, High-power electric system are Equipped with Bafang 72v5000w beastly motor and The front 72v20ah and Rear 72v10ah military-grade battery systems, Delivering 180NM peak explosive torque and up to 80 miles (PAS 1) unstoppable range. Use BAFANG app to fine-tune motor parameters and personalize your ride from your smartphone ,fully programmable display to create a Class 1, Class 2, Class 3 or Unlimited Mode. "Lets Unleash the Wild Power Together " --Magician Ebikes
Customized all new Bafang 72v 3000w 20 inch Inrunner motor, smooth and quiet, delivering unparalleled power to easily conquer any terrain and challenge. Every ride is filled with speed and excitement
A dual-crown front fork that delivers a maximum steering angle of over 50°, greatly enhancing high-speed handling confidence without sacrificing maneuverability.
DNM air shock absorber enhances your eBike's comfort, providing a smoother, more enjoyable ride on any terrain!
With a color display and smart dashboard, create your personalized interface. Bluetooth app support for seamless connectivity!
Quad-piston brakes for smooth, reliable stopping power, ensuring your safety with every ride
From tackling climbs to maintaining top speed, the Shimano Altus delivers exceptional performance.
Technical Specifications
Motor
Customized all new Bafang 72v 3000w 20 inch Rear-hub motor, peak 5000w, peak torque 180 N.M
Battery sizes
Total capacity of 72v 30ah 2160wh: 72v 20ah 1440wh (Front battery) + 72v 10ah 720wh
Controller
Bafang 72v 60a 18 mosfets high performance controller
Display
Bafang DP C010 center-mounted colour LCD diaplay
Lights
12v 9w 180LUX
Bottom Bracket
Bafang Torque sensor, 120mm
Assist Type
Cadence/Torque optional
Assist Levels
0-5
Throttle
Right-hand twist throttle with on/off button
Shiter Rear
Shimano Altus 7 speed, thumb shifter
Cassette
11-34T Shimano cassette
Chain
KMC Z8.3 EPT 118 links
Crank set
Double chain ring 58T/152mm arms
Fork
Exsho Dual crown suspension hydraulic fork, 100mm travel, 38mm reinforced inner tube, thru axle, lockout and preload
Rear suspension
DNM 38RC air coil shock, 190*51mm
Frame
6061 Full suspension aluminum
Front hub
135mm thru axle
Front axle
15mm thru-axle
Rims
Thickened double-layer aluminum alloy, rear 36H*10G, Front 36H*13G
Tire Sizes
Innova 20*4.0, the custom tire is capable of withstanding high speeds of 80-100 km/h
Headset
Ginyea bearings headset
Brakes
Star Union quad-piston hydraulic w/203mm rotors
Integrated brake cutoffs
Handlebar
740mm wide BMX style, carbon steel material
Stem
110mm*25.4mm
Grips
Bolt-on MTB grips
Saddle
DDK-2261Q wide padded saddle
Regular Seat post
30.9*300mm
Seat post clamp
38.1mm quick release
Weight
Total weight of bike with both batteries = 132LBS / Total weight of bike without batteries = 98LBS
Payload
Bike Maximum payload=450lbs
Top Speed
Max 50mph
Recommended riding height
5'-6'3''
