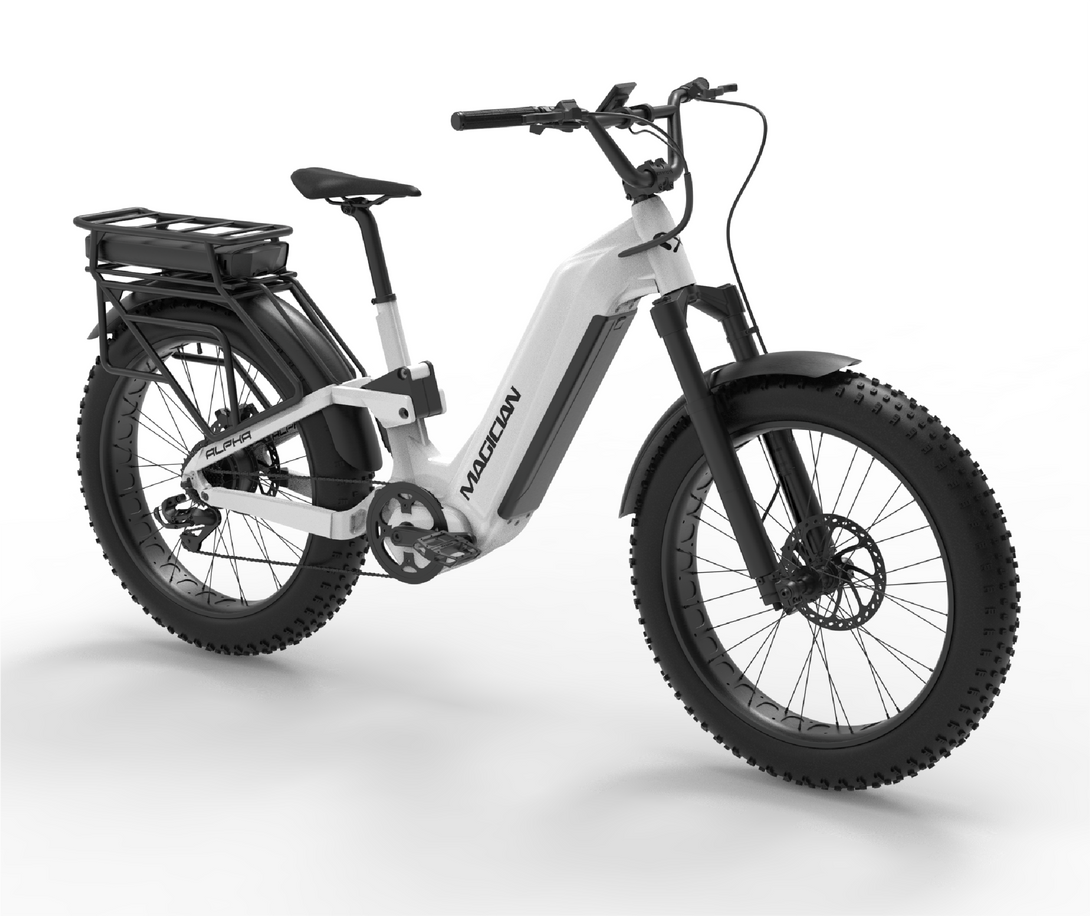

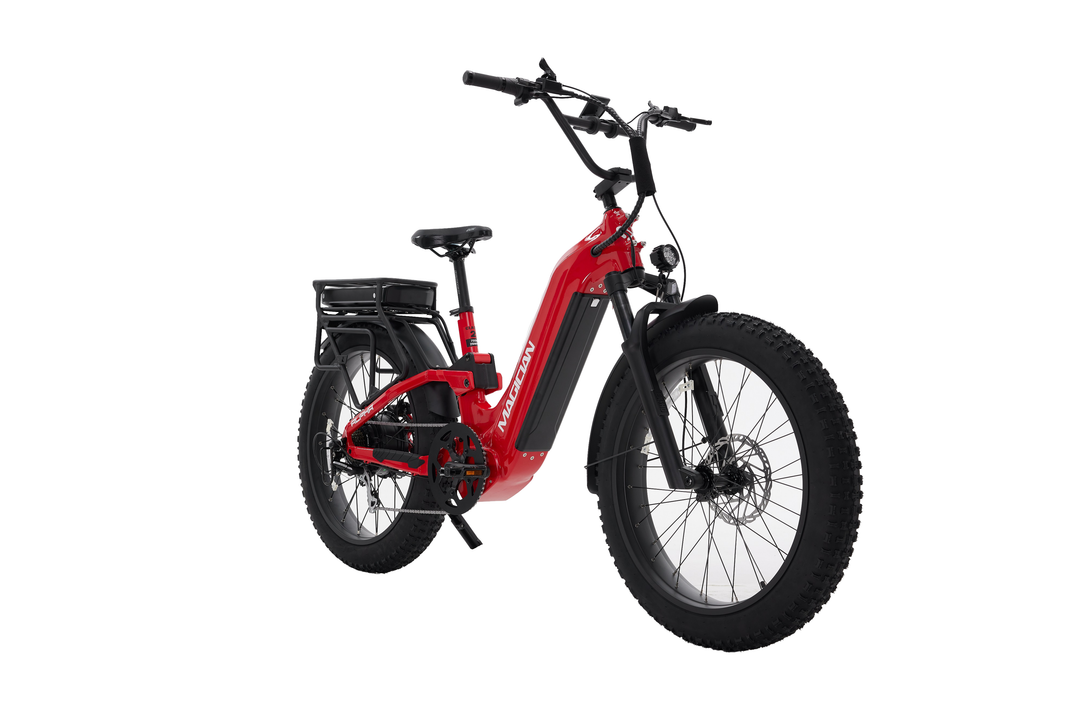

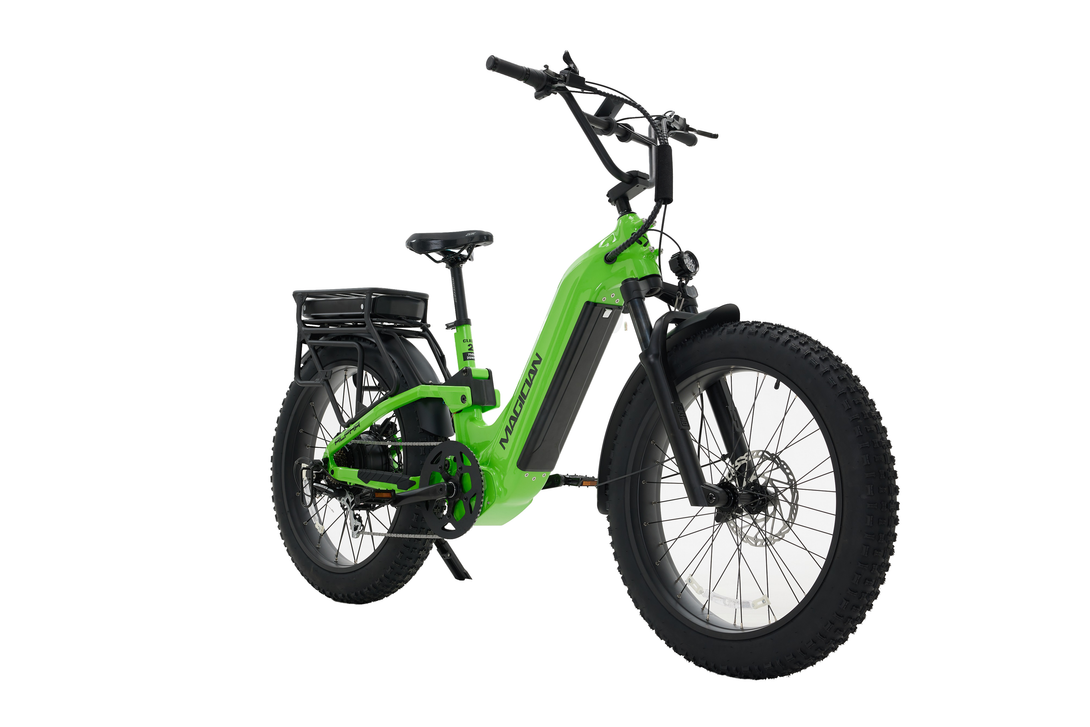

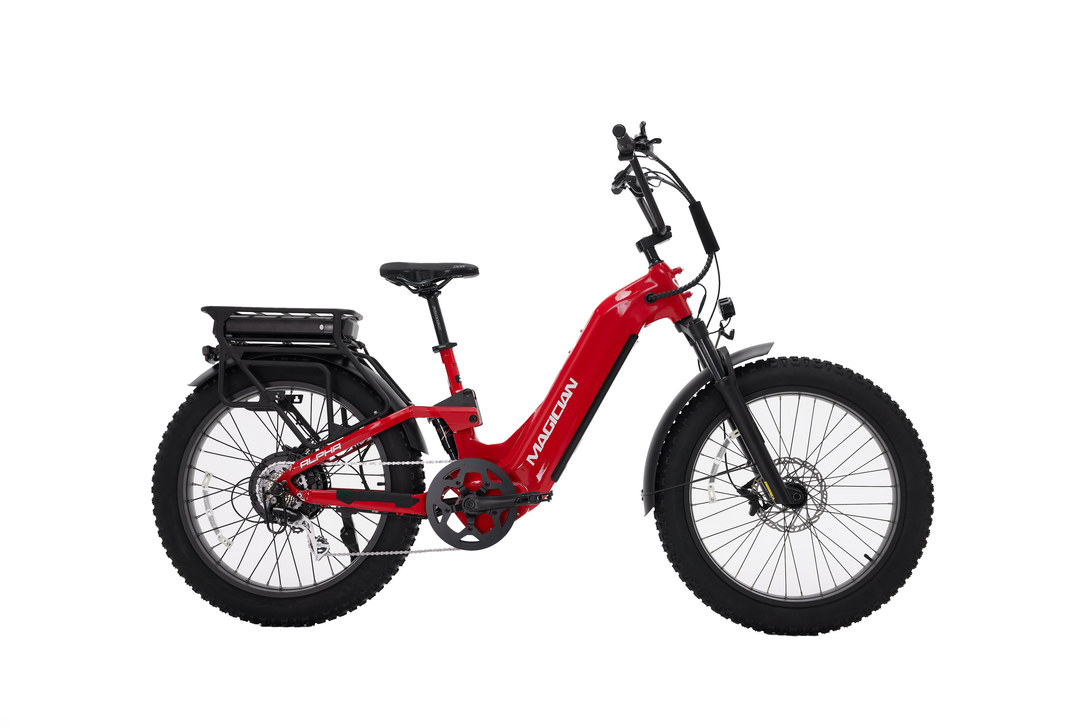

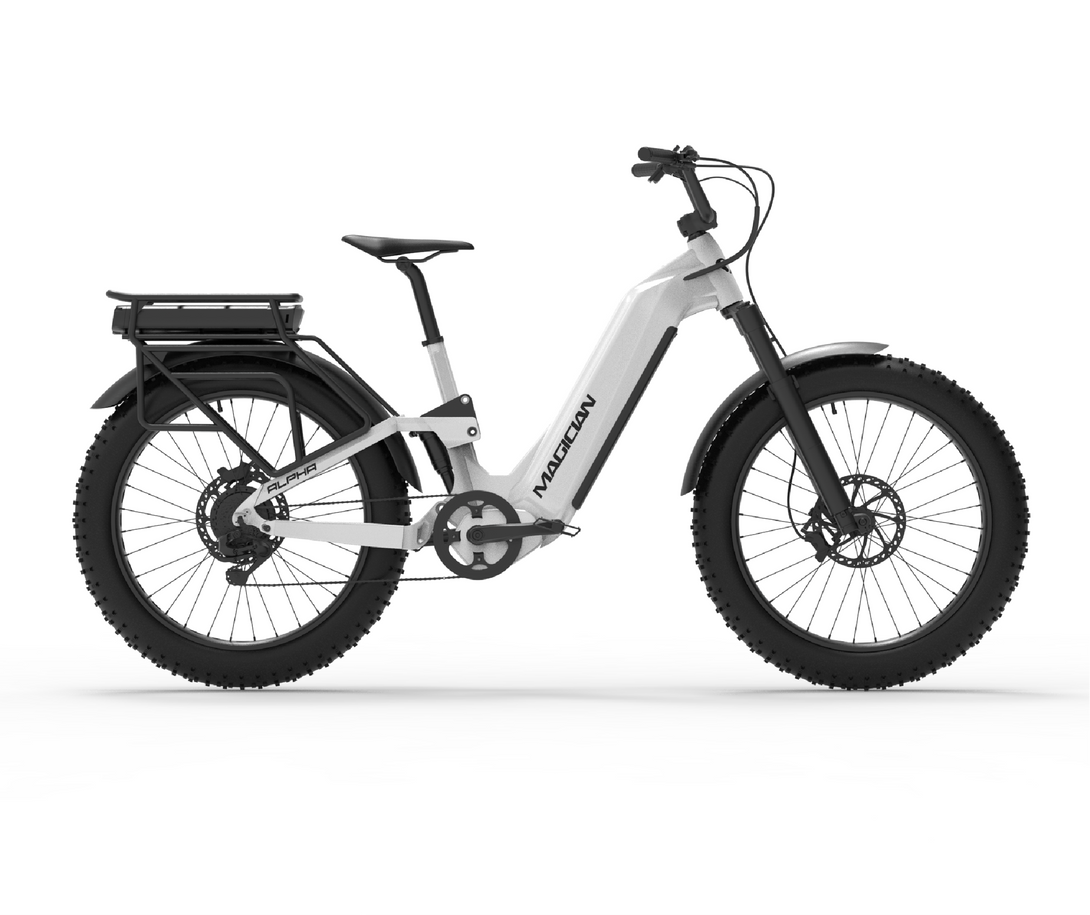

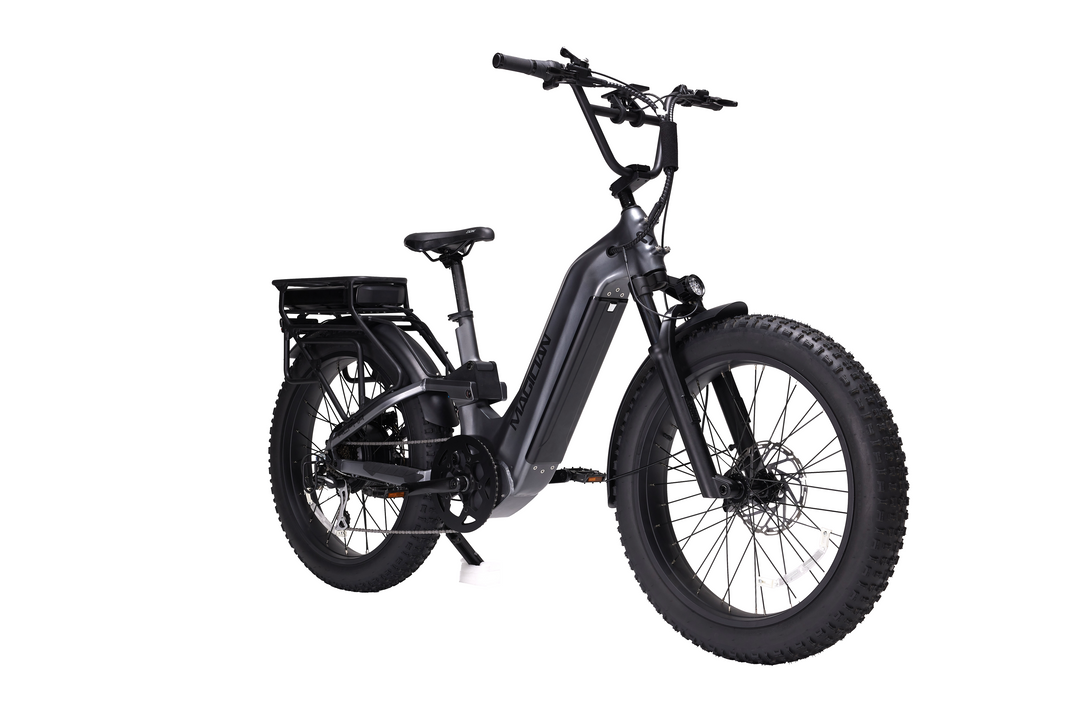

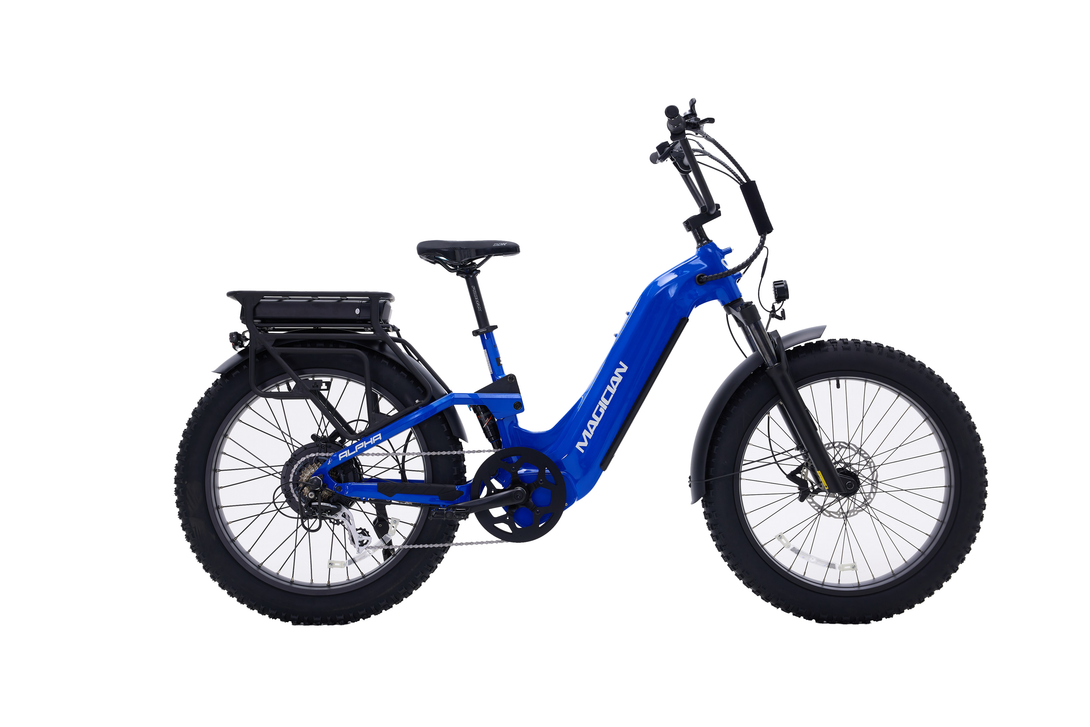

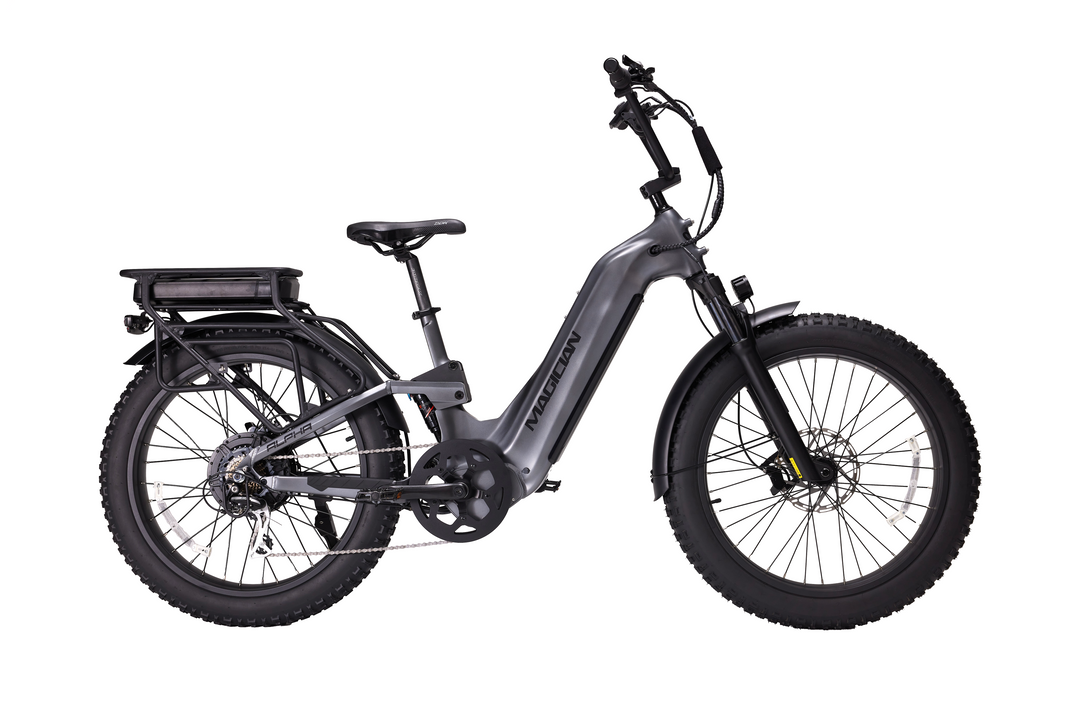

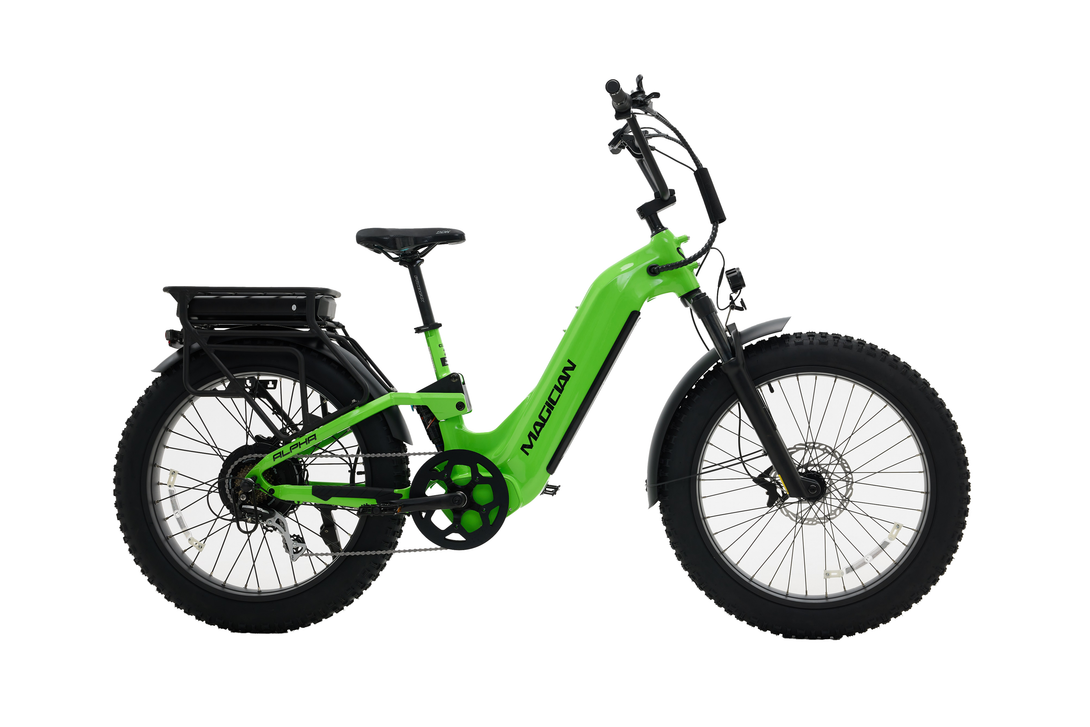

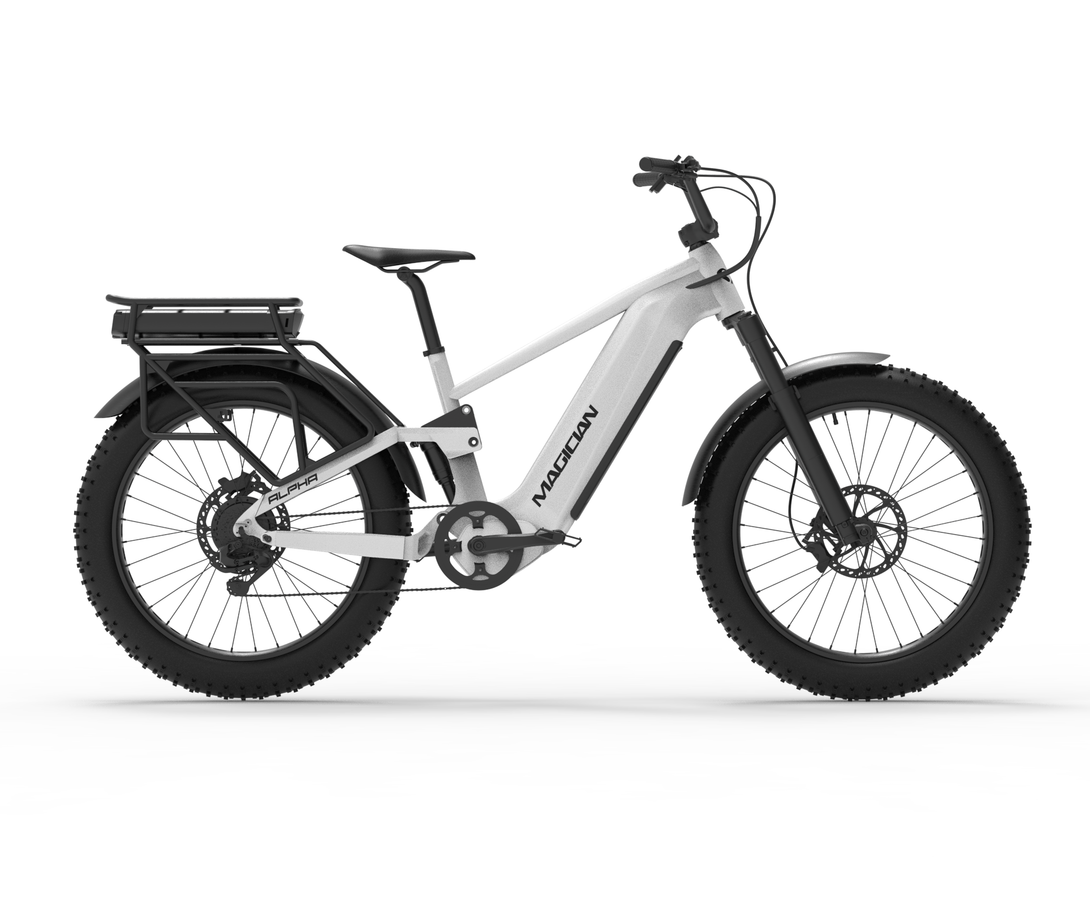

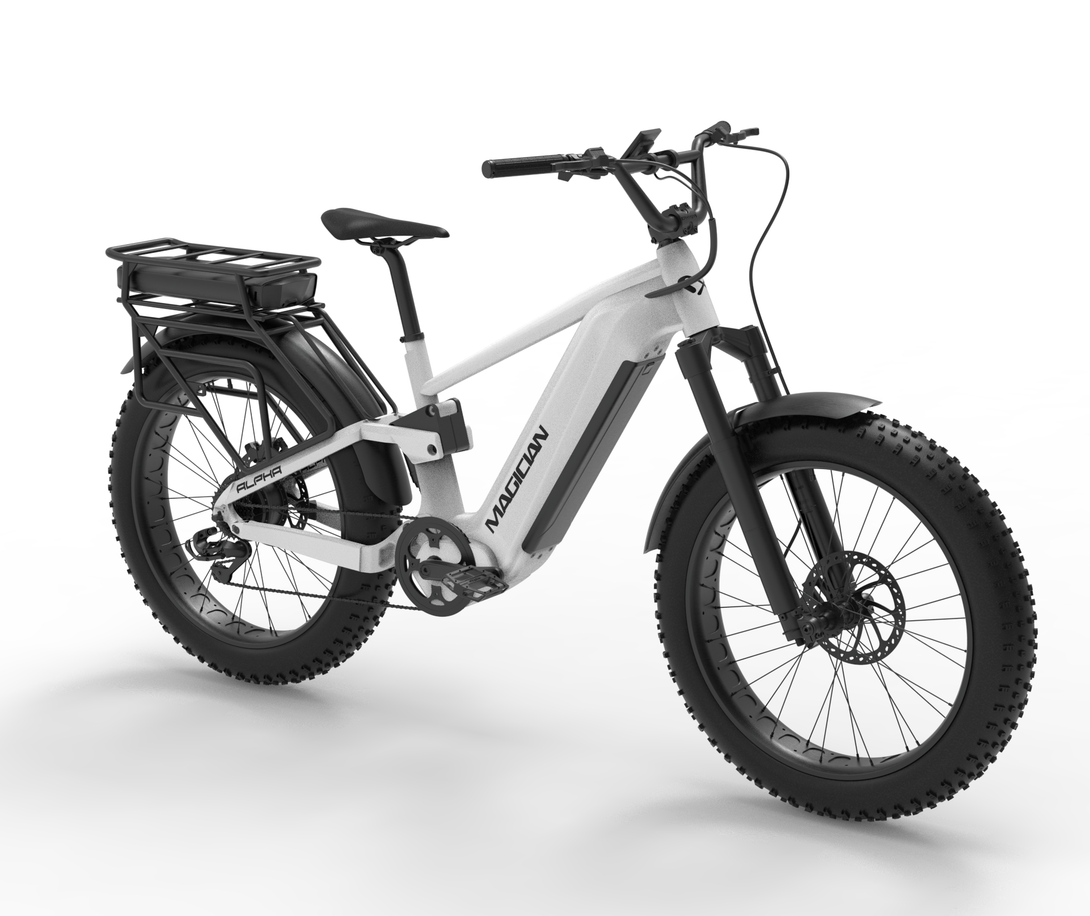

Alpha
Alpha is Built for hardcore riders, Full suspension Frame, High-power electric system are Equipped with Bafang 72v5000w beastly motor and The front 72v20ah and Rear 72v10ah military-grade battery systems, Delivering 200NM peak explosive torque and up to 80 miles (PAS 1) unstoppable range. Use BAFANG app to fine-tune motor parameters and personalize your ride from your smartphone ,fully programmable display to create a Class 1, Class 2, Class 3 or Unlimited Mode. "Lets Unleash the Wild Power Together " --Magician Ebikes
DISCOVER OUR NEW TECH
Frame Technology
Low Step-Thru Frame, Built for Power and Control
The frame is specially designed for high-power, low step thru models with full suspension, offering better frame strength and a professional shock compression curve.
High-Speed Bearings for Smooth Suspension Travel
All pivot points use high-strength, high-speed bearings to ensure the smooth operation of the suspension system.
Precision Engineering, Downhill-Grade Durability
We hold every detail to higher standards. The pivot assembly follows top-tier downhill bike standards, using custom stainless steel washers and bolts, with all assembly tolerances under 0.1mm. This ensures a tight fit between all parts, enabling easy handling under high loads and complex terrains, significantly reducing frame failure rates and maintenance frequency.
Reinforced Motor Mount for Torque Stability
The rear motor mount is custom-designed with reinforced, high-strength hooks and paired with custom stainless steel anti-rotation washers to ensure stable performance under high torque and high speed.
Motor Technology
Bafang High-Power Inrunner Motor + Advanced Composite Gears
Industry-first high-power inrunner motor paired with ultra-durable composite gears — stronger than steel, heat-resistant, wear-proof with 60% less noise.
Ultra-Precise Dual-Side Torque Sensor
With 0.0001% precision — the highest in the industry — the torque sensor syncs both pedals for smart, responsive power on flats or climbs.
Built to Handle Anything
IPX7 waterproof, 80% efficiency, 140 Nm continuous torque (200 Nm peak). Rain or rough terrain — ride with confidence.
E-System Technology
E-System Powered by BAFANG
Motor, controller, and display — all built on BAFANG’s trusted platform.
Optimized Integration
Full BAFANG integration ensures precise software tuning and seamless hardware compatibility. This means fewer system faults, better power-efficiency balance, and a smooth, stable ride — even under high loads. Intelligent thermal management also protects the controller during intense riding.
Reliable North American Support
In case of issues, BAFANG’s well-established North American service network ensures fast and effective diagnostics and after-sales support.
Tailored Riding Experience
With the BAFANG BESST programming tool, you can customize motor behavior to match your personal riding style.
DIY Motor Tuning via App
Download the official BAFANG app to fine-tune motor parameters and personalize your ride from your smartphone
Bafang 72V 3000W Inrunner motor, smooth and quiet, delivering unparalleled power to easily conquer any terrain and challenge. Every ride is filled with speed and excitement
Built with a reinforced inner tube front fork for unmatched durability and stability—experience smoother, safer rides on your eBike!
DNM air shock absorber enhances your eBike's comfort, providing a smoother, more enjoyable ride on any terrain!
Standard dual battery setup 72v 20ah + 72v 10ah = 2160Wh, enjoy worry-free long-distance rides and endless adventure!
With a color display and smart dashboard, create your personalized interface. Bluetooth app support for seamless connectivity!
Quad-piston brakes for smooth, reliable stopping power, ensuring your safety with every ride
From tackling climbs to maintaining top speed, the Shimano Acera delivers exceptional performance.
Equipped with the coolest tail light featuring a brake light function, ensuring your safety on every ride.
Technical Specifications
Motor
Bafang 72v 3000w Rear-hub motor, peak 5000w, peak torque 200 N.M
Battery sizes
Samsung high power cells, total capacity of 72v 30ah 2160wh: 72v 20ah 1440wh (Front battery) + 72v 10ah 720wh
Controller
Bafang 72v 58a 18 mosfets high performance controller
Display
Bafang DP C010 center-mounted colour LCD diaplay
Lights
12v 9w 180LUX
Bottom Bracket
Bafang Torque sensor, 120mm
Assist Type
Cadence/Torque optional
Assist Levels
0-5
Throttle
Right-hand twist throttle with on/off button
Shifter Rear
Shimano Acera 7 speed, thumb shifter
Cassette
11-34T DNP Cassette
Chain
KMC Z8.3 EPT 130 links
Crank set
56T/170mm arms
Fork
Exsho Suspension hydraulic fork, 120mm travel, 38mm reinforced inner tube, lockout and preload
Rear suspension
DNM 38RC air shock, 190*51mm
Frame
6061 Full suspension aluminum
Front hub
135mm thru axle
Front axle
15mm thru-axle
Rims
Thickened double-layer aluminum alloy, rear 36H*10G, Front 36H*13G
Tire Sizes
Innova 26*4.0, the custom tire is capable of withstanding high speeds of 80-100 km/h
Headset
Ginyea bearings headset
Brakes
Star Union quad-piston hydraulic w/203mm rotors
Integrated brake cutoffs
Handlebar
740mm wide BMX style, carbon steel material
Stem
110mm*25.4mm
Grips
Bolt-on MTB grips
Saddle
DDK 123MF wide padded saddle
Seat post
30.9*300mm
Seat post clamp
38.1mm quick release
Weight & Payload
Total weight of bike with both batteries = 135lbs / Total weight of bike without batteries = 101lbs Bike Maximum payload=450lbs
